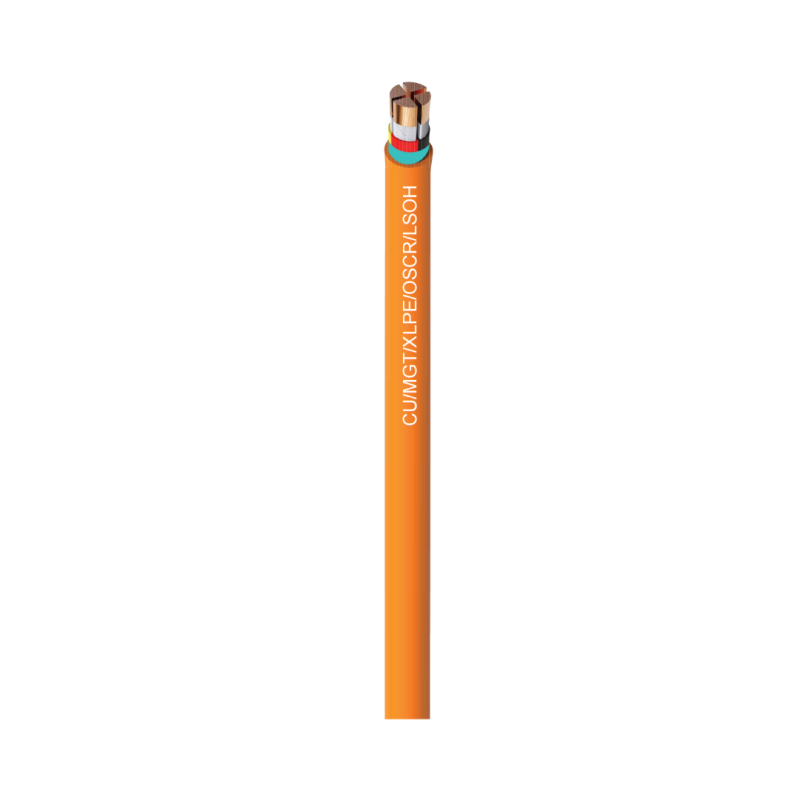

CU/MGT/XLPE/OSCR/LS0H 0.6/1KV
- Product Code: SMI FIRE RESISTANT CABLE 0.6 1KV
Cable is designed for areas where the integrity of the electrical circuit is critical in maintainin power supply. Application can be found in emergency lightings, control and power circuits, power stations, fire alarm systems, underground tunnels, communications systems, sewage treatment plants, lifts, escalators, and high-rise buildings.
Conductor
Plain Annealed Copper Wire Class 2
IEC 228-BS 6360
Wrapping Tape
Mica Glass Tape
Insulation
XLPE (Cross-linked Polyethylene)
Core Identification
2 core: Red, Black
3 core: Red, Yellow, Blue
4 core: Red, Yellow, Blue, Black
Multi core: Black with core numbering
Overall Screen
Aluminium/polyester tape (100% coverage) with tinned copper drain wire 0.5mm²
Outer Sheath
Low smoke halogen free compound (LSOH) Orange or Black (other colour upon request)
Fire Resistant
IEC 60331
Flame Retardant
IEC 60332-1
Flame Propagation
EC 60332-3 Cat.C
Acid Gas Emission
IEC 60754
Smoke Emission
IEC 61034
| Nominal Voltage | 600/1000V |
| Insulation Resistance | At 20°C 5000Mohm/km` |
| Test Voltage | 4000V 5 min |
| Min. Bending Radius | 10 x O.D (Mobile) |
| Temperature Rating | 90°C |
