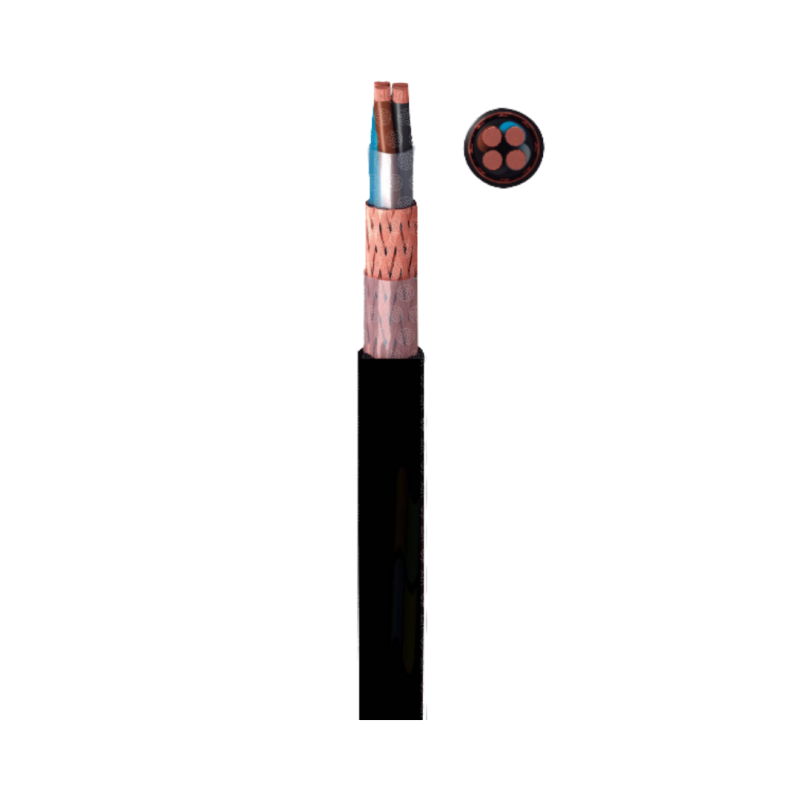

XTCuZ1-K(AS) MARINE ARMOURED POWER CABLE
- Product Code: XTCuZ1-K(AS)
The Toxfree Marine XTCuZ1-K (AS) cable with zero halogens is a high security cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in marine applications.
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228.
Insulation
LSZH XLPE 90ºC.The standard identification is the following:
1 x ...................................... Black
2 x ...................................... Blue + Brown
3 x ...................................... Brown + Black + Grey
4 x ...................................... Blue + Brown + Black + Grey
5 or more conductors ......... White with black numbers
Armour
Copper braid screen.
Outer sheath
LSZH polyolephine outer sheath SHF1 type. Black colour, non-toxic and fire re-tardant.
| Min. Bending Radius | 5 x cable diameter |
| Max. Temperature (short-circuit) | 250ºC (maximum 5 s) |
| Flexible conductor | class 5 |
| Minimum service temperature | -40°C(Fixed) |
| Meter by meter marking | yes |
| Flame non-propagation | yes |
| Outdoor installation | permanent |
| Water resistance | AD3 sprays |
| Chemical & Oil resistance | acceptable |
| No fire propagation | Yes |
| LSZH | Yes |
| Low smoke emission | Light transmittance > 60% |
| Low corrosive gases emission | Yes |
| Environmentally friendly | Yes |
| Mechanical stress impac | AG3. High severity |
| Max. Temperature (service) | 90°C |
