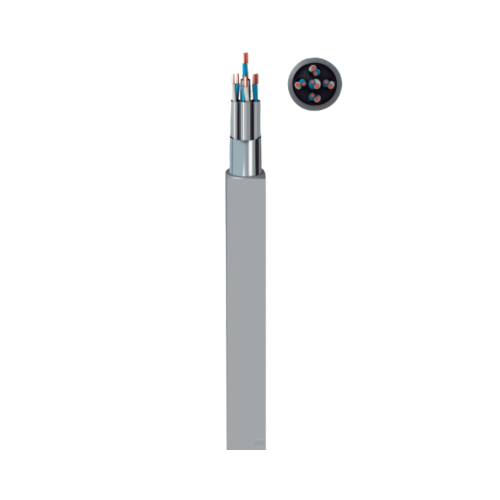

XOxZ1-K(AS) MARINE INSTRUMENTATION CABLE
- Product Code: XOxZ1-K(AS)
The Toxfree Marine XOxZ1-K (AS) cable is a highly flexible cable for permanent installation on ships and o$shore units. The cable is particularly suitable for power circuits where shielding is required, or areas which requires additional protection against possible shock. The cable material is halogen free, has low smoke emission and is fire retardant.
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228.
Insulation
LSZH XLPE 90ºC.The standard identification is the following per pair:
1 x ...................................... Blue
1 x ...................................... White
Each pair is numbered.
Screen
01... Individual screen. Polyester tape with Cu drain wire.
02...Overall screen of aluminum. Polyester tape with tinned copper drain wire.
03... Individual and overall screen of aluminum. Polyester tape with Cu drain wire.
Outer sheath
LSZH polyolephine outer sheath SHF1 type. Grey colour, non-toxic and fire retardant.
| Min. Bending Radius | 5 x cable diameter |
| Flexible conductor | class 5 |
| Minimum service temperature | -40°C(Fixed) |
| Meter by meter marking | yes |
| Flame non-propagation | yes |
| Outdoor installation | permanent |
| Water resistance | AD3 sprays |
| Chemical & Oil resistance | acceptable |
| No fire propagation | Yes |
| Electric fields resistant | Yes |
| LSZH | Yes |
| Low smoke emission | Light transmittance > 60% |
| Low corrosive gases emission | Yes |
| Environmentally friendly | Yes |
| Mechanical stress impac | AG3. High severity |
| Max. Temperature (service) | 90°C |
