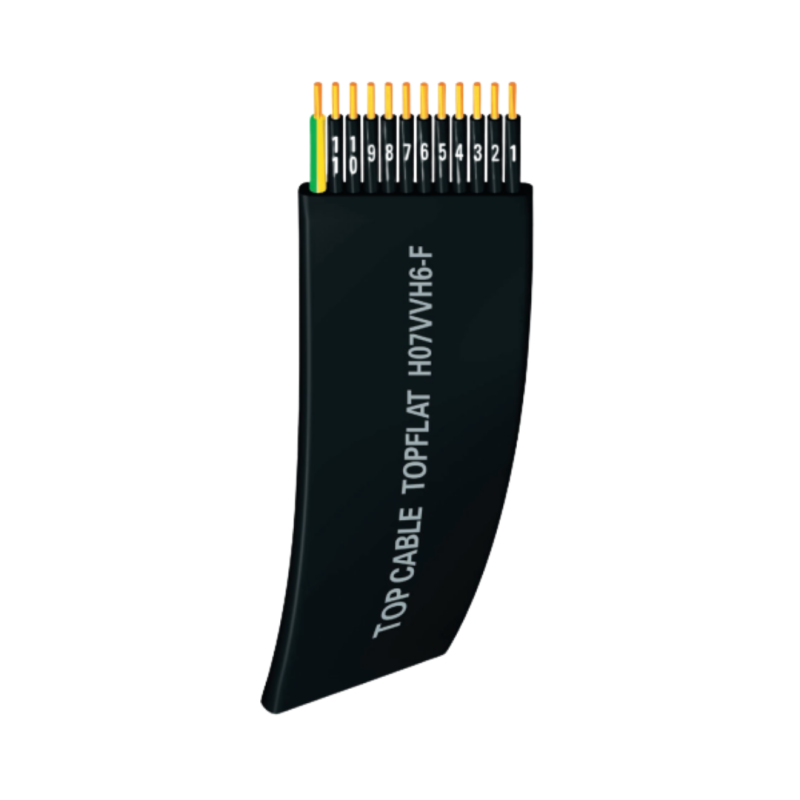

H07VVH6-F FLAT CABLE
- Product Code: H07VVH6-F
The Topflat HO7VVH6-F cable is specially suitute for connecting overhead cranes, devices for operating racks, hoists, lifts, etc. The hanging length of the cable can reach up to 35m and its pull out speed can reach up to 1.6 m/s (overlaying cables is not recommended when installing).
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228.
Insulation
PVC.
The standard identification is the following:
4G..............Brown + Black + Grey+lon/Green
6 or more conductors. Black numbered + Green
Outer sheath
Flexible PVC outer sheath, Black colour.
| Min. Bending Radius | 25 x cable thickness |
| Max. Temperature (short-circuit) | 160ºC (maximum 5 s) |
| Flexible conductor | class 5 |
| Minimum service temperature | 0ºC |
| Meter by meter marking | Yes |
| Flame non-propagation | Yes |
| Impact resistance | AG2. medium impact |
| Outdoor installation | occasional |
| Water resistance | AD6 waves |
| Chemical & Oil resistance | good |
| Max. Temperature (service) | 70ºC |
