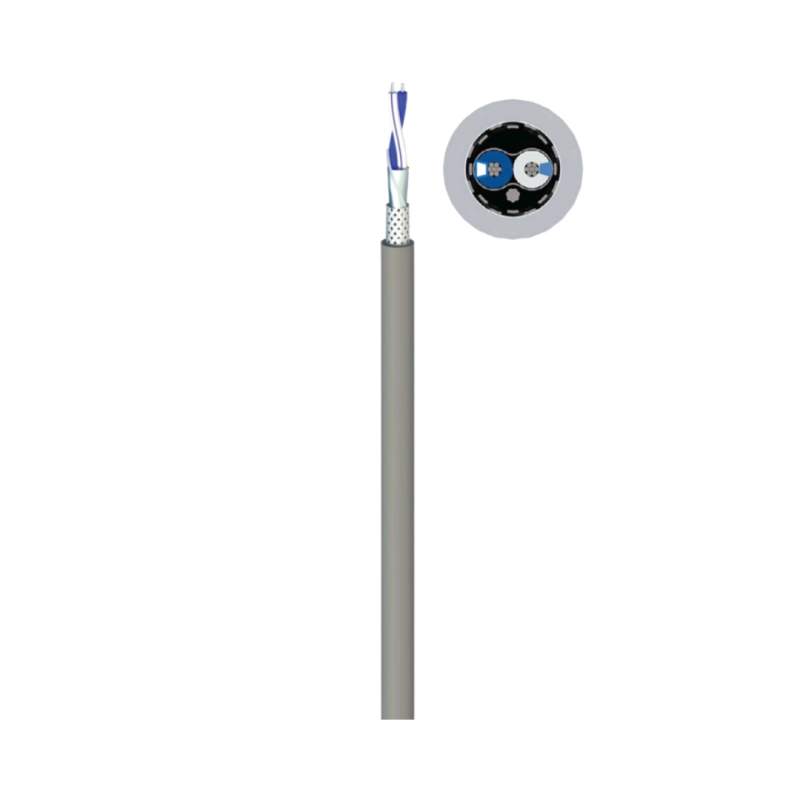

UL2919 RS485 SHIELDED
- Product Code: RS485 1 X 2 X 24AWG
Low capacitance cable with a high level of screening. Provides interference free, high speed da transmission suitable for RS485 applications.
Specification
Inner Conductor
Tinned Copper
Insulation
HD Polyethylene
Insulation Color
Blue/White, White/Blue
Wrapper Shelld
AL-PET>115%
Drain Wire
Tinned Copper
Braiding
Tinned Copper 112 x 0.12±0.008mm
Jacket
PVC
Jacket Thichness
Jacket Color
Grey RAL 7032
Electrical Performance (20°C)
Impedence
120±5 Ohm
Capacitance
97pF/m
Voltage Radius
≤300V
Bending Radius
10 x Diameter
Operating Frequency
1000 Mhz
Dielectric Strength
0.5KV AC/Min
Conductor Resistance@ 20°C
< 84.6 Ohm/km
Deformalion Test
≤ 50%
| Applications | -Suitable for RS232, RS 422 and RS485 application |
| Approvals | -RoHS -REACH |
| Thermal Performance | -Maximum services temperature: 80°C -Minimum services temperature: -30°C |
| Electrical Performance | -Low Voltage: 300V -Test Voltage :AC 2000V |
| Based On | -UL 2919 |
| Fire Performance | -Flame non-propagation base on IEC60332-1/UL1581/VW-1 |
| Mechanical Performamnce | Minimum bending radius: 10 x Cable diameter |
| Installation Condition | -In conduit -Open Air |
| Environmantal Performance | -Water resistance: AD5 Jets -Chemical Et Oils resistance: Good |
