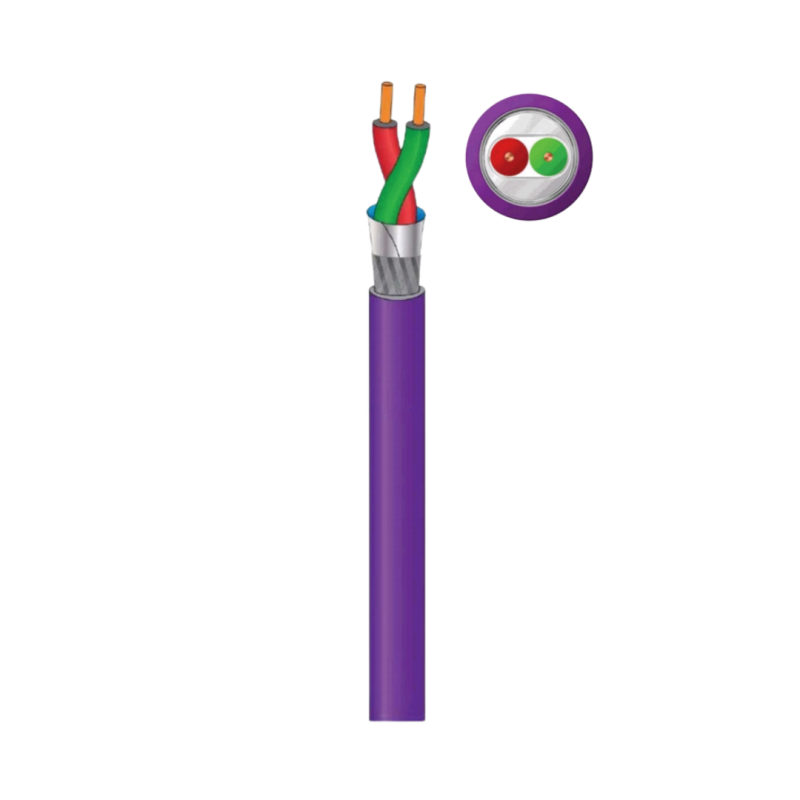

PROFIBUS DP
- Product Code: PROFIBUS DP 1 X 2 X AWG 22
Use in Field Bus Coummunication especially in Industry Automation & Control System.
Specification
Inner Conductor
Bare Copper
Insulation
Foamed PE
Insulation Color
Green/Red
Filler Material
PE Strip
Foil Sheild
AL-PET >110%
Braiding Shield
Tinned Copper 96 x 0.12±0.008
Coverage
≥60%
Jacket
PVC
Jacket Color
Violet RAL4005
Electrical Performance (20°C)
Voltage Rating
300 V
Nom velocity of propagation
78%
Test Voltage
(50Hz, 1min) AC 2000V
Mutual Capacitance(nominal)
C-C: 30pF/m
Impedence:
150 ± 15Ω @3-20MhzHz
Conductor DC Resistance@20°C
≤ 55Ω/km
Min Bending Radius
7.5 x Cable diameter
Attenuation:
≤ 11.0 dB/Km @0.2MHz≤ 26.5 dB/Km @4MHz≤ 54.0 dB/Km @16MHz
| Applications | - Interconnections for L2-DP BUS components -F.I.P - (Factory Instrumentation protocol) -Profibus FMS(Fieldbus Message Specification) |
| Approvals | RoHS |
| Thermal Performance | -Maximum services temperature: 90°C -Minimum services temperature: -20°C |
| Electrical Performance | -Low Voltage:500V -Test Voltage :AC 2000V |
| Based On | -EN 50265-2-1 -IEC 61158-2 |
| Fire Performance | -Flame non-propagation base on IEC 60332-1 -Fire non-propagation base on IEC 60332-3-24 |
| Mechanical Performamnce | Minimum bending radius: 7.5 x Cable diameter |
| Installation Condition | -In conduit -Open Air |
| Environmantal Performance | -UV Resistance -Water resistance: AD5 Jets -Chemical Et Oils resistance: Good |
