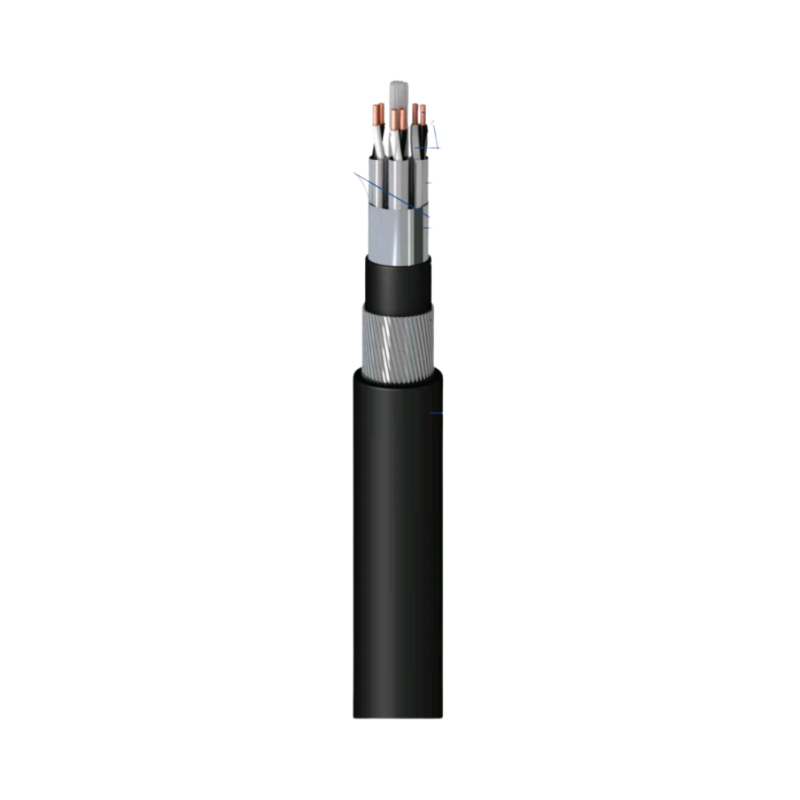

RE-2X(ST)YSWAY-FL PimF ARMOURED INDIVIDUAL SCREEN
- Product Code: RE-2X(ST)YSWAY-FL PimF
Screened cable for data transmission between industrial equipment. The overall screen and individual (per pair) and overall screen make them especially suitable for their use in high electromagnetic noise environments
Conductor
Multi stranded annealed electrolytic copper, class 2 based on IEC 60228. Cross section 0,75 mm², 1,0 mm², 1,5 mm².
Insulation
XLPECore identification
Pair: Black & White Each unit numbered.
(Others Colours available on request)
Laying-up
Twisted pairs.
Individual Screen
Individual polyester (PET) (per pair) composed by on aluminum/polyester tape with 100% coverage + tinned copper drain wire.
Overall Screen
Aluminum polyester (PEPT) tape with 100% coverage tinned copper drain wire.
Inner Sheath (Bedding)
PVC flame retardant Black color.
Armour
Galvanized steel wire armour with 0,8 mm of nominal diameter, helically placed over the separation sheath,
Outer Sheath
PVC flame retardant sheath, black color. Blue for IS, (upon request)
| Applications | Industrial use |
| Approvals | RoHS |
| Thermal Performance | -Maximum services temperature: 90°C -Minimum services temperature: -20°C |
| Electrical Performance | -Low Voltage:500V -Test Voltage :AC 2000V |
| Based On | EN 50288-7 |
| Fire Performance | -Flame non-propagation base on IEC 60332-1 -Fire non-propagation base on IEC 60332-3-24 |
| Mechanical Performamnce | Minimum bending radius: 7.5 x Cable diameter |
| Installation Condition | -Buried -In conduit -Open Air |
| Environmantal Performance | -UV Resistance -Water resistance: AD5 Jets -Chemical Et Oils resistance: Good |
