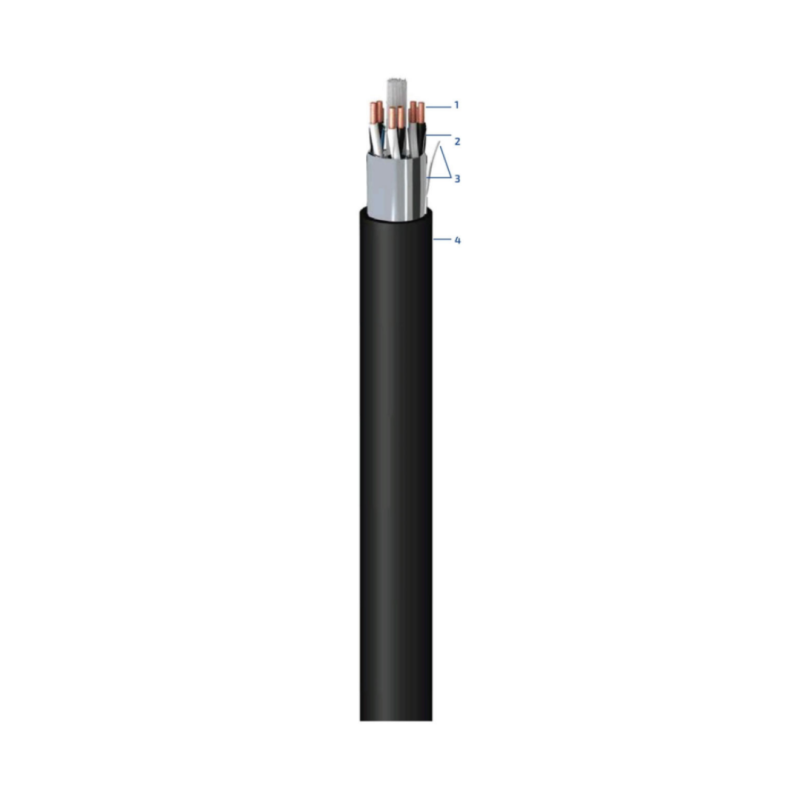

RE-2X(ST)Y-FL NON-ARMOURED SCREEN
- Product Code: RE-2X(ST)Y-FL
Screened cable for data transmission between industrial equipment. The overal/collective screen make them especially suitable for their use in high electromagnetic noise environments.
Conductor
Multi stranded annealed electrolytic copper, class 2 based on IEC 60228. Cross section 0,75 mm². 1.0 mm², 1.5 mm²
Insulation
XLPE Core identification
Pair: black & white. Each unit numbered.
(Others Colours available on request)
Laying-up
Twisted pairs, assembled in concentric layem
Overall Screen
Aluminum + polyester (PEPT) tape with 100% coverage tinined copper drain wire of 0,5 mm.
Outer Sheath
PVC flame retardant sheath, black color. Blue for IS. (upon request)
| Applications | Industrial use |
| Approvals | RoHS |
| Thermal Performance | -Maximum services temperature: 90°C -Minimum services temperature: -20°C |
| Electrical Performance | -Low Voltage:500V -Test Voltage :AC 2000V |
| Based On | EN 50288-7 |
| Fire Performance | -Flame non-propagation base on IEC 60332-1 -Fire non-propagation base on IEC 60332-3-24 |
| Mechanical Performamnce | Minimum bending radius: 7.5 x Cable diameter |
| Installation Condition | -In conduit -Open Air |
| Environmantal Performance | -UV Resistance -Water resistance: AD5 Jets -Chemical Et Oils resistance: Good |
