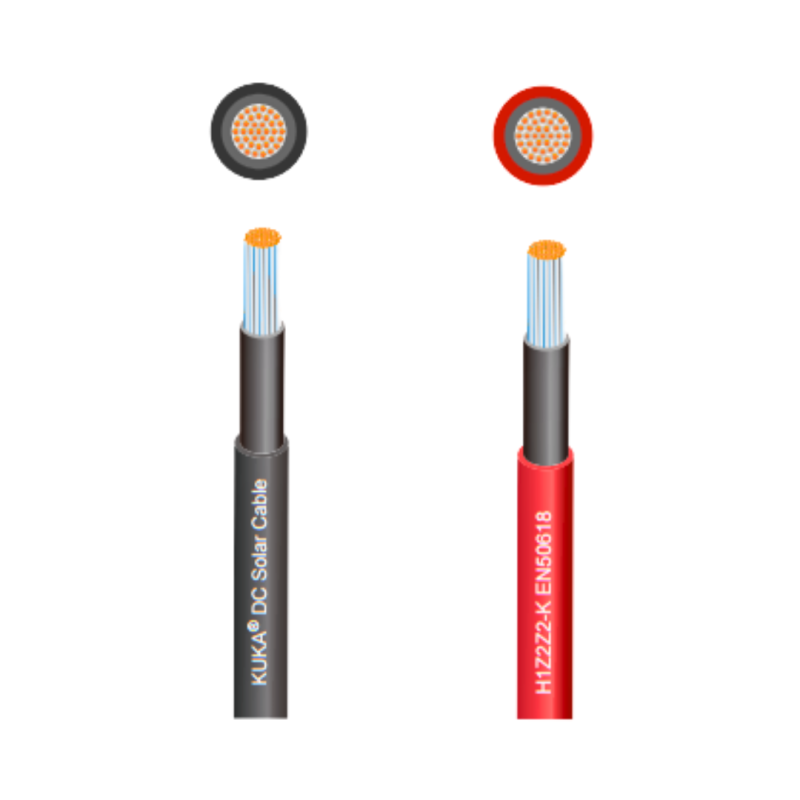

H1Z2Z2-K SOLAR CABLE – CCA Type
- Product Code: H1Z2Z2-K
6mm² H1Z2Z2-K Solar Cable （IEC 60332-3-25) TÜV 1500V, for photovoltaic power Direct Current (DC) .
Conductor
Class 5 flexible tinned copper, acc. to DIN VDE 0295 / IEC EN 60228
Size
6mm²
Stranding
84*0.285 ± 0.005mm
Diameter
3.0mm ± 0. mm
Insulation
XLPO, electron-beam cross-linked, LSHF
Thickness
0.7mm ± 0.0 mm
Color
Black
Jacket
XLPO, electron-beam cross-linked, LSHF
Thickness
0.8mm ± 0.0 mm
Color
Black or Red
Outer Diameter:
6.1mm ± 0.2mm
| Min. Bending Radius | Fixed: 4 x Overall Diameter; Flexing: 5 x Overall Diameter |
| Approvals | EN50618 H1Z2Z2-K & IEC62930 |
| Temperature range | -40 °C to +90 °C, Max. temp. at conductor +120 °C |
| Weather /UV resistance | EN 50289-4-17 |
| Ozone resistance | EN 50396, cl. 8.1.13 |
| Halogen free | EN 60754-1 |
| Flame-resistant test | EN 60332-1-2, IEC 60332-3-25 |
| Short circuit temperature | 250°C for 5 s |
| Anticipated service life | 30 years |
